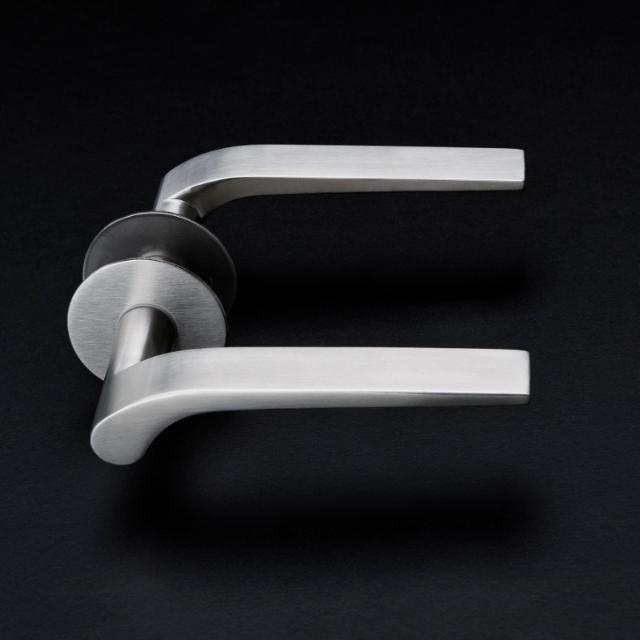

0625-0632 Door handle with rosette
6254951004
Door handles with rosettes for door thicknesses 32 - 85 mm For door thicknesses over 85 mm, use door handle pin 951.910.
1 PCS - EUR 100,5
EUR 100.50
InStock
Available in stock
1
in stock
CylinderCount:1
product.Id:6254951004 product.VariantId: StockWebshop:1 HasStock:True disableAddToCart: product.StockLevel:1 unitStockLevel:1
Prices include VAT, read more about delivery to specific countries
|
|
 |
- EAN/GLN number
- 5708538633466
- Manufacturer item number
- 951004
Specifications

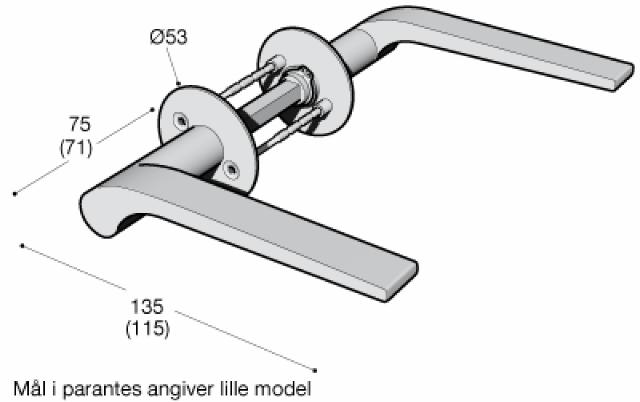

Technical specifications Supplied incl. 8 x 8 mm door handle pin in stainless steel. Door handles with rosettes are delivered incl. 2 pcs. M4 x 75 mm and 2 pcs. M4 x 110mm through screws. Center distance on rosettes: 30 mm or 38 mm. ASSA ABLOY :DO:RE:MI: door handle with rosettes center distance 30 mm supplied incl. ASSA ABLOY door handle plug and loose return spring 570. ASSA ABLOY :DO:RE:MI: door handle is delivered incl. needle bearing. ASSA ABLOY :DO:RE:MI: is produced from brushed acid-resistant stainless steel AISI 316L. For other products such as cylinder rings, long signs etc. see the Ruko-line series.
