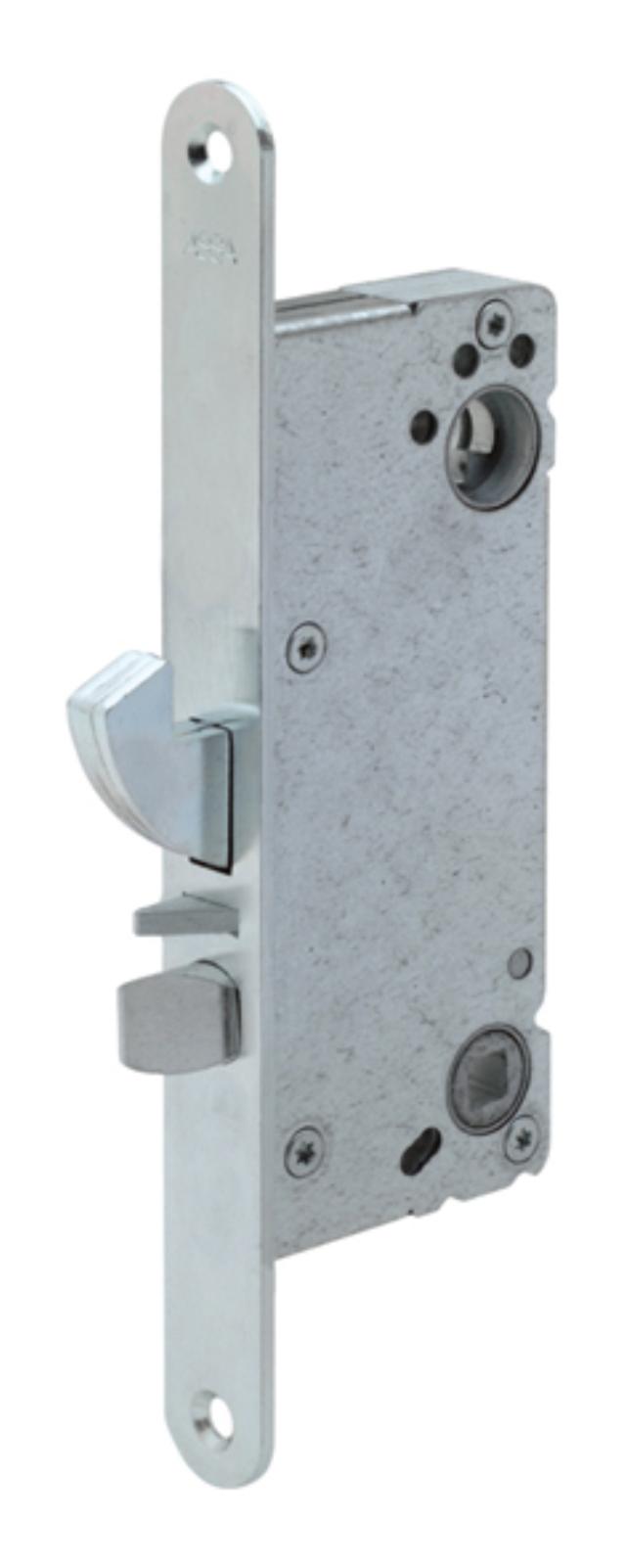

Lock box 640-35 H in / 1pc.
6254968730
Assa lock box Connect 640
Trap and chin bar lock with 90° key turn and split handle trap tube
The lock box can be used for doors where locking with a deadbolt and door handle latch retention as well as door handle opening from the inside is desired.
From the outside, pull the door handle latch into the lock box with the door handle or the key.
From the outside, pull the latch into the lock box with the key.
From the inside, pull the door handle latch and hook into the lock box with the door handle, key or twist handle.
The cylinder latch is locked in the locked position when the latch is pressed into the lock box.
Note that the case is not reversible, but that the lock is ordered as right or left
Trap and chin bar lock with 90° key turn and split handle trap tube
The lock box can be used for doors where locking with a deadbolt and door handle latch retention as well as door handle opening from the inside is desired.
From the outside, pull the door handle latch into the lock box with the door handle or the key.
From the outside, pull the latch into the lock box with the key.
From the inside, pull the door handle latch and hook into the lock box with the door handle, key or twist handle.
The cylinder latch is locked in the locked position when the latch is pressed into the lock box.
Note that the case is not reversible, but that the lock is ordered as right or left
EUR 373.00
InStock
Available in stock
1
in stock
CylinderCount:1
product.Id:PROD2311 product.VariantId: StockWebshop:1 HasStock:True disableAddToCart: product.StockLevel:0 unitStockLevel:0
Prices include VAT, read more about delivery to specific countries
|
|
![]() |
- EAN/GLN number
- 7332404093931
- Manufacturer item number
- 968730
Specifications
- Brand
- Ruko
- Centerafstand (mm)
- 105
- Dornmål (mm)
- 35
- Lock box type
- Modullås
- direction (fall)
- Højre
- Stolpebredde (mm)
- 22
- Symmetrical
- Symmetrisk
Chart
| Name | Download | File type | |
|---|---|---|---|
|
|
6254968730_c.pdf | 93 KB | |
|
|
6254968730_e.pdf | 100 KB | |
|
|
6254968730_b.pdf | 106 KB | |
|
|
6254968730_g.pdf | 106 KB | |
|
|
6254968730_f.pdf | 99 KB |
Product information
| Name | Download | File type | |
|---|---|---|---|
|
|
6254968730_d.pdf | 241 KB | |
|
|
6254968730_a.pdf | 21 KB |
