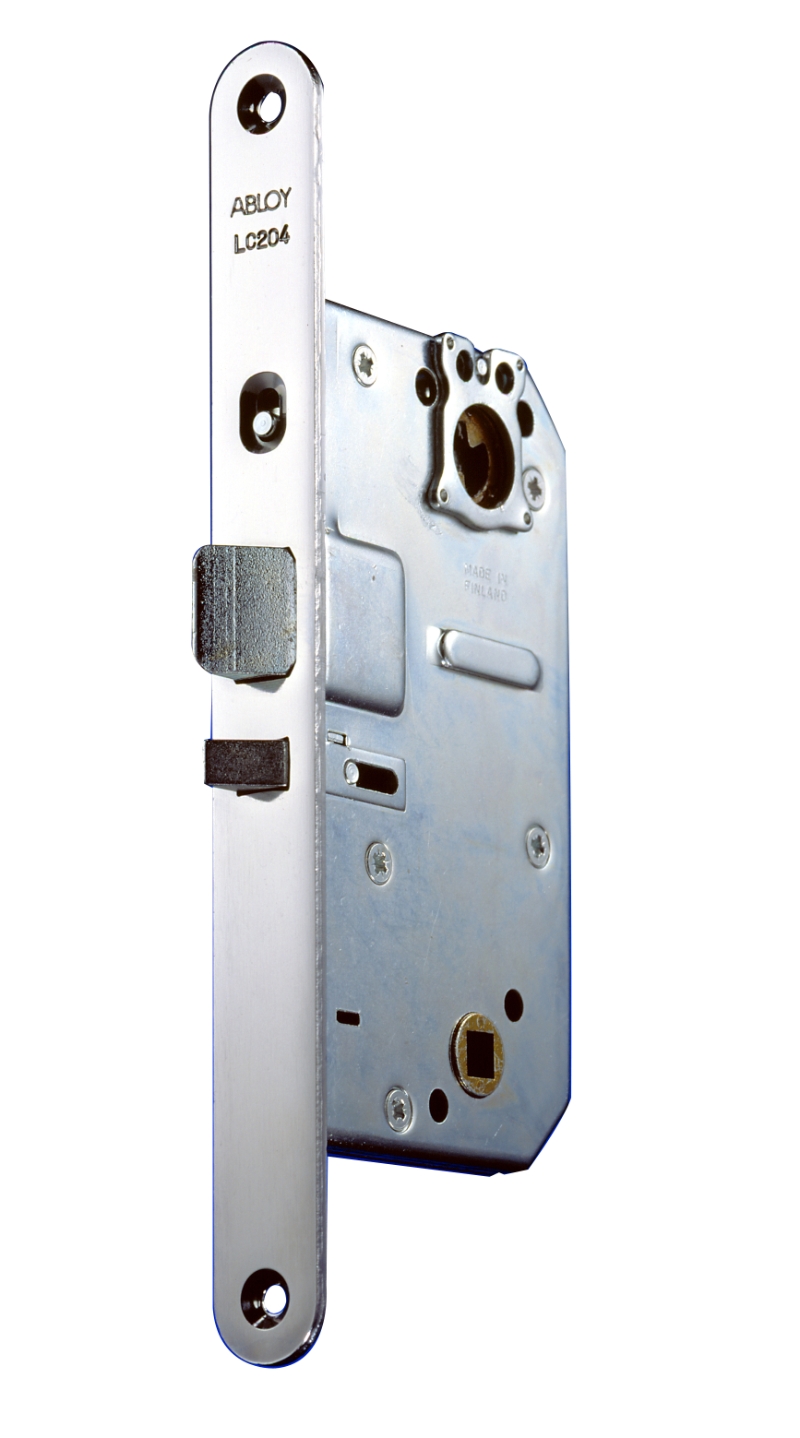

Assa lock box LC204v w/tin (990552)
6255418001
For office doors, entrance doors and the like.
EUR 364.80
OutOfStock
5 days expected delivery time
CylinderCount:1
product.Id:6255418000 product.VariantId:VO30 StockWebshop:0 HasStock:False disableAddToCart:disabled product.StockLevel:0 unitStockLevel:0
Prices include VAT, read more about delivery to specific countries
|
|
 |
- EAN/GLN number
- 6416471982471
- Manufacturer item number
- 990552
Specifications
Chart
| Name | Download | File type |
|---|
Product information
| Name | Download | File type | |
|---|---|---|---|
|
|
6255418001_c.pdf | 296 KB | |
|
|
6255418001_a.pdf | 296 KB | |
|
|
6255418001.pdf | 105 KB | |
|
|
6255418000_c.pdf | 296 KB | |
|
|
6255418000.pdf | 105 KB | |
|
|
6255418000_a.pdf | 296 KB |

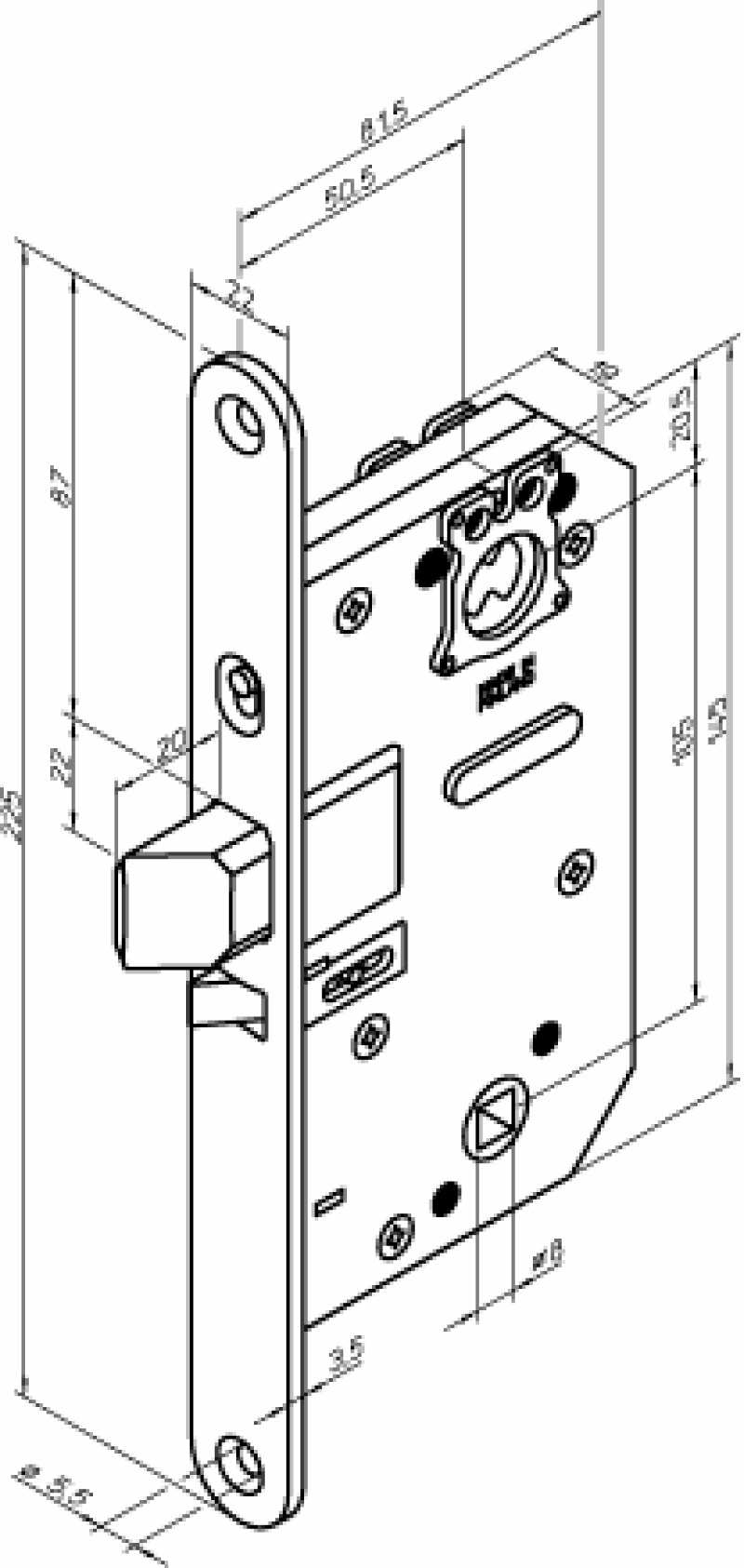

Technical specifications Single latch lock with automatic locking on the latch, the lock is equipped with auxiliary latch. The lock is equipped with a switch button with 2 functions. UP = The lock box latches and the latch springs out 20mm. The lock can only be opened with a cylinder or twist. DOWN = The lock box works like a normal drop-down lock box and can be opened with a cylinder/turner and door handle. The fall protrudes 14mm. Lock box and post made of chrome-plated steel sheet and can be ordered on the right or left. Temperature range: -20 to +80 gr. Cel. Approvals and markings Certified according to EN12209 [3-X-5-1-0-F-3-BB-2-0] Can be used on fire-classified doors up to 120 min
