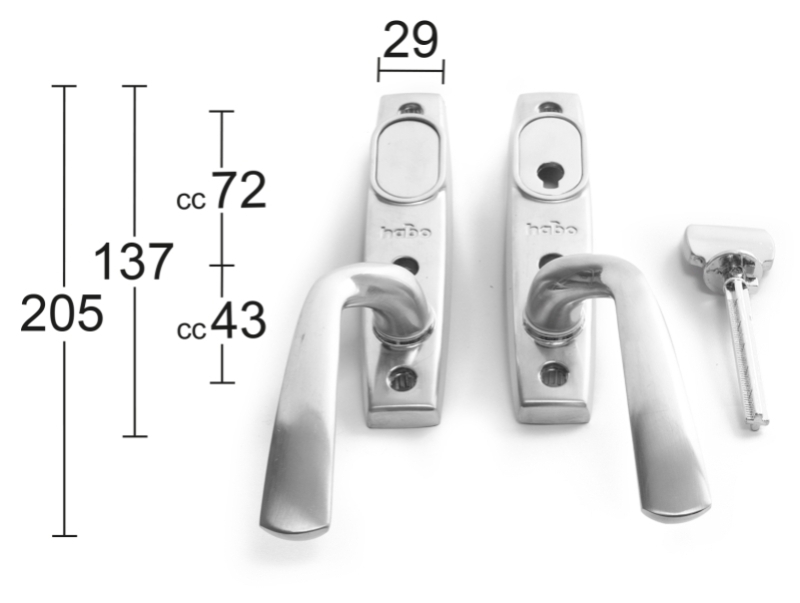

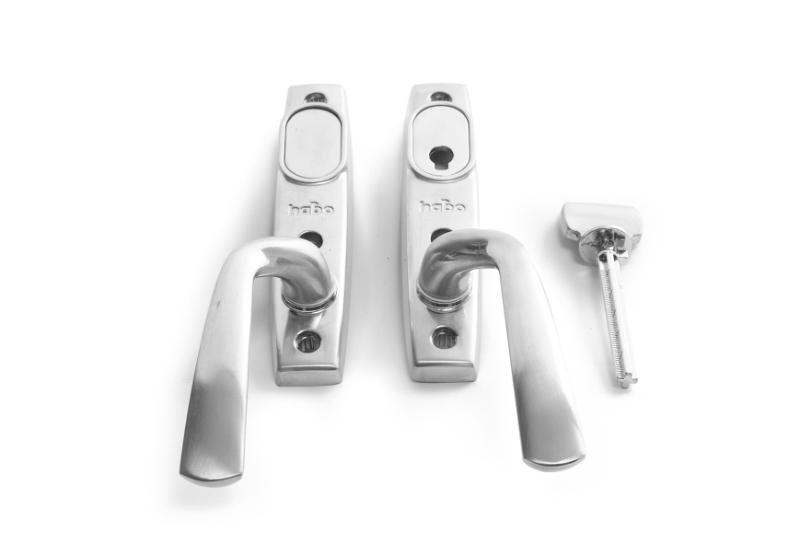

PATIO DOOR HANDLE COPENHAGEN BRUSHED CHROME
Patio door handle set in zinc, including long plate. Reversible.

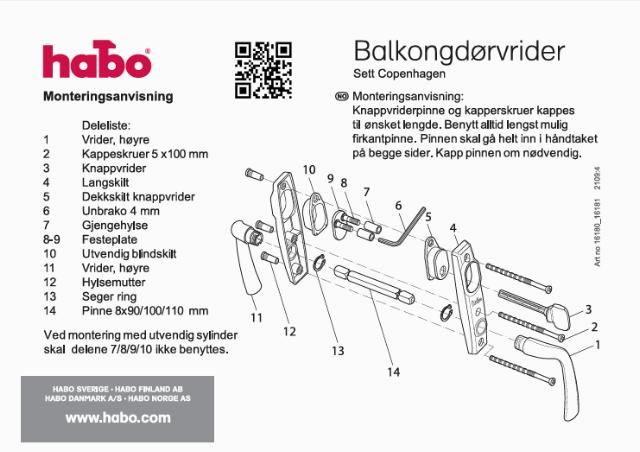

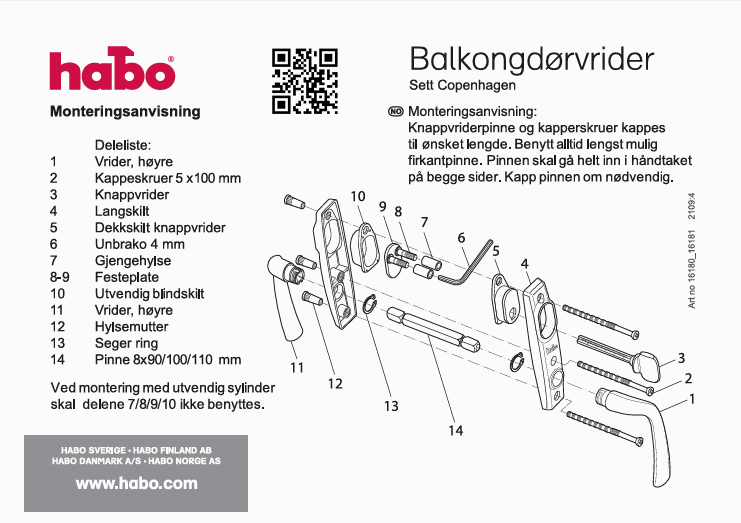

Fits door thicknesses 53-78 mm. Complete set with internal knob handle, external blank plate, 5x100 mm through screw and 8x90/100/110 square pins. If necessary, the handle can be mounted with an "away function".
Can also be mounted with an oval cylinder for a rod lock. Always use the longest possible square pin when mounting. The pin must go all the way into the handle on both sides.
NOTE, this lock requires that your patio door's rod lock is prepared for a cylinder, meaning the lock case is born with a mounting hole for a cylinder.
If you need more, we will get them from the supplier in a short time.
Prices include VAT, read more about delivery to specific countries
|
|
 |
- EAN/GLN number
- 7317900161810
- Manufacturer item number
- 16181
Specifications
Specifications:
- Material: Zinc
- Surface: Brushed chrome
- Door thickness: 53-78 mm
- Included: Knob turner, dummy sign, screws, square pin
- Reversible: Yes
- Mounting: Screw fastening
- Application: Terrace doors
